How to Use the GitLab Proxy in CI

Background

The GitLab dependency proxy, allows us to cache Docker images that we pull from Docker Hub. This allows us to reduce bandwidth and speed up builds, i.e. quicker to pull Postgres for our tests in CI.

It can also avoid us potentially hitting rate limits with Docker Hub as well. Especially in groups that have a lot of projects that are constantly running in CI.

Setup

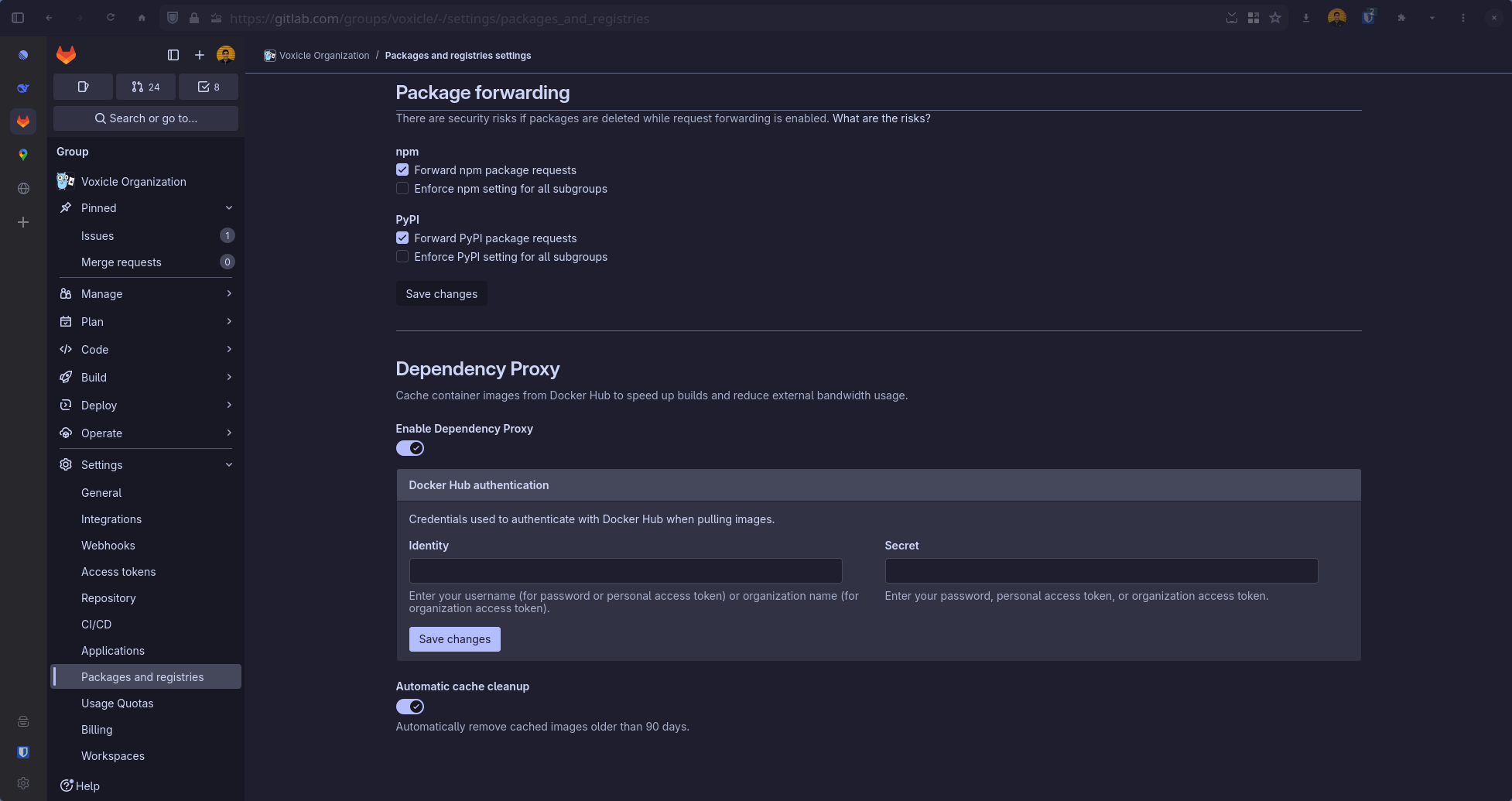

First go to your group and enable the Dependency Proxy and potentially the automatic cache clean up if you like.

Then we can now do ${CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX}/postgres:17.4 to pull images. You can set that up in GitLab, CI.

In my case, some of my jobs use the nixos/nix so in GitLab CI I use:

image: ${CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX}/nixos/nix

I also use docker-compose in CI:

tests:integration:
  extends:
    - .test
  script:
    - docker compose --profile test up -d
    - task tests:integration -- ${GOTEST_EXTRA_ARGS}

We need to authenticate with the proxy, and you can do in CI like so:

.test:
  services:
    - name: docker:dind
  before_script:
    - docker login -u "$CI_DEPENDENCY_PROXY_USER" -p "$CI_DEPENDENCY_PROXY_PASSWORD" "$CI_DEPENDENCY_PROXY_SERVER"

Then we can update our docker-compose.yml file like so:

services:
  postgres:
    image: ${CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX:-docker.io}/postgres:17.4
    profiles:
      - test
    ports:
      - 5432:5432
    environment:
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: postgres
    volumes:
      - postgres-data:/var/lib/postgresql/data
      - ./docker/postgres-init.sql:/docker-entrypoint-initdb.d/init.sql

You will notice :-docker.io this means that if the environment variable is not set for the dependency proxy. It defaults to docker.io so this docker compose file will work locally and in CI.

But for non Docker Hub images you cannot use the dependency proxy, so we leave it like so:

  smocker:
    image: ghcr.io/smocker-dev/smocker:1.0.0
    profiles:
      - other
    ports:
      - 44300:8080
      - 44301:8081

That’s it! You can now use the GitLab dependency proxy, which should help speed up CI a bit.

Variables

• CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX pulls through the top-level group.
• CI_DEPENDENCY_PROXY_DIRECT_GROUP_IMAGE_PREFIX pulls through the subgroup, or direct group the project exists in.

Links

• https://docs.gitlab.com/user/packages/dependency_proxy/
